Getting around Elite
The four view modes

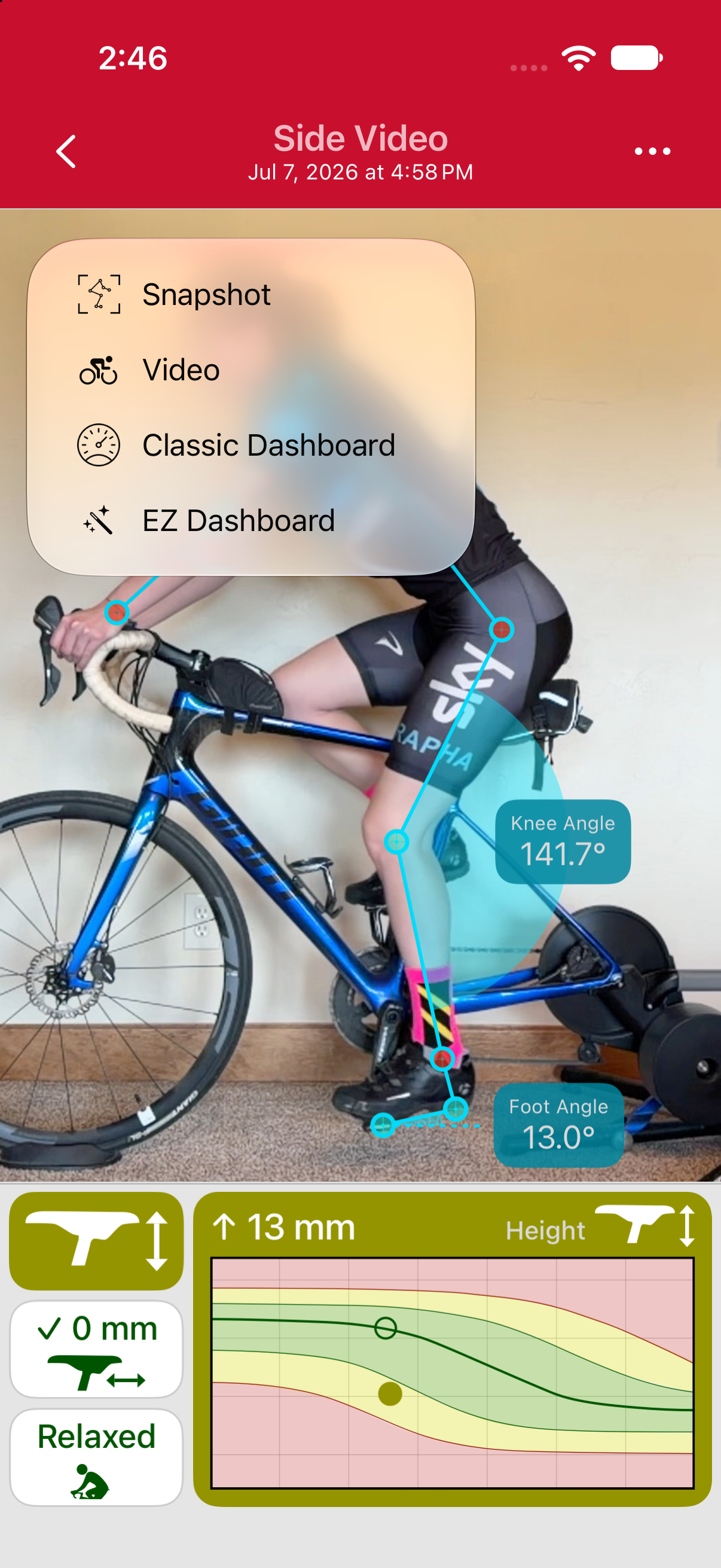

Open a side or front video and it starts on the EZ Dashboard. The button at the top left shows which view you're in. Tap it to switch, or swipe up or down. Swipe left or right to move to the next or previous video in the session.
| View | What it shows |
|---|---|

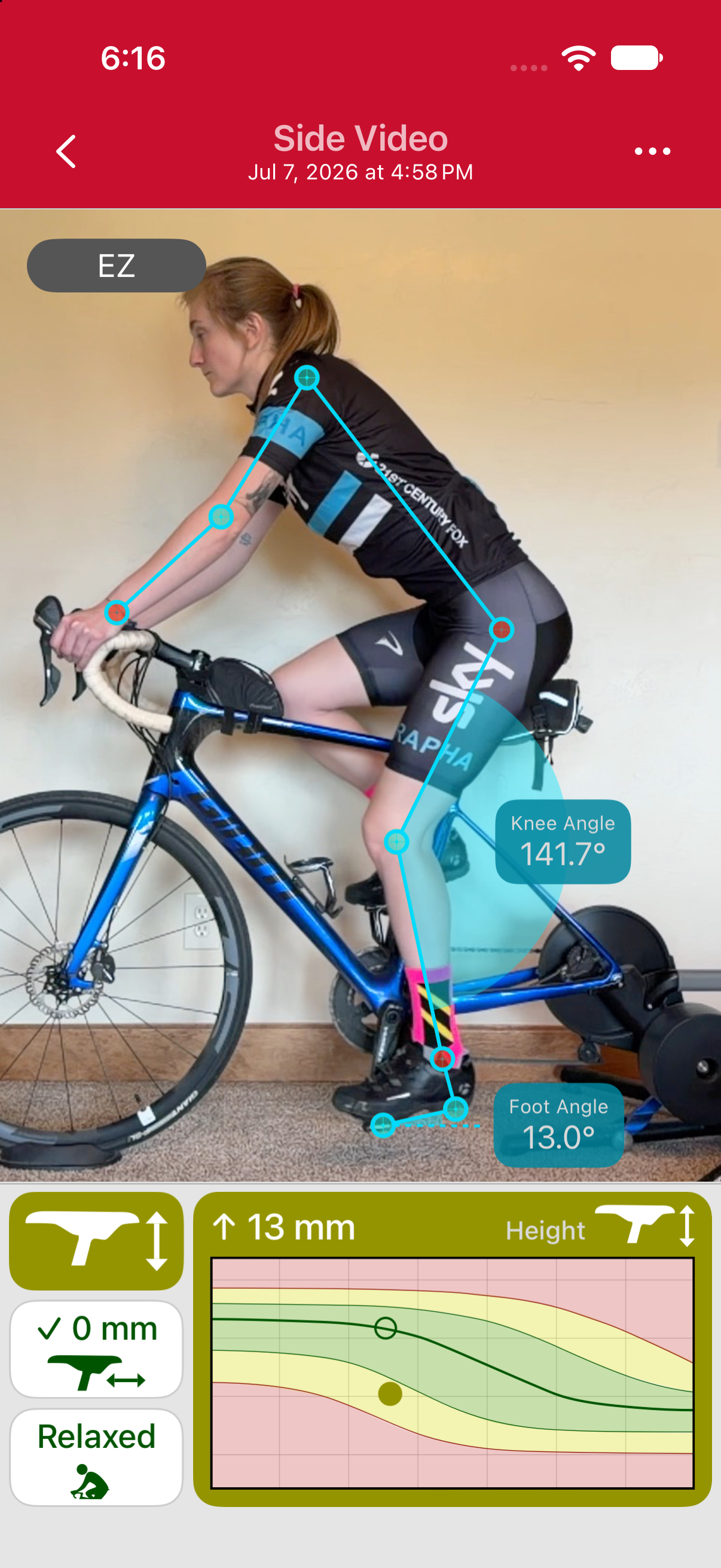

| EZ Dashboard | Your three headline results, each with a zone chart. On a side video: Height, Fore/Aft, and Position. On a front video: Knee Tilt, Knee Tracking, and Toe Tracking. |
| Classic Dashboard | Your measurements at the top, at 3 o'clock, and at MKE, each against its normal range. |

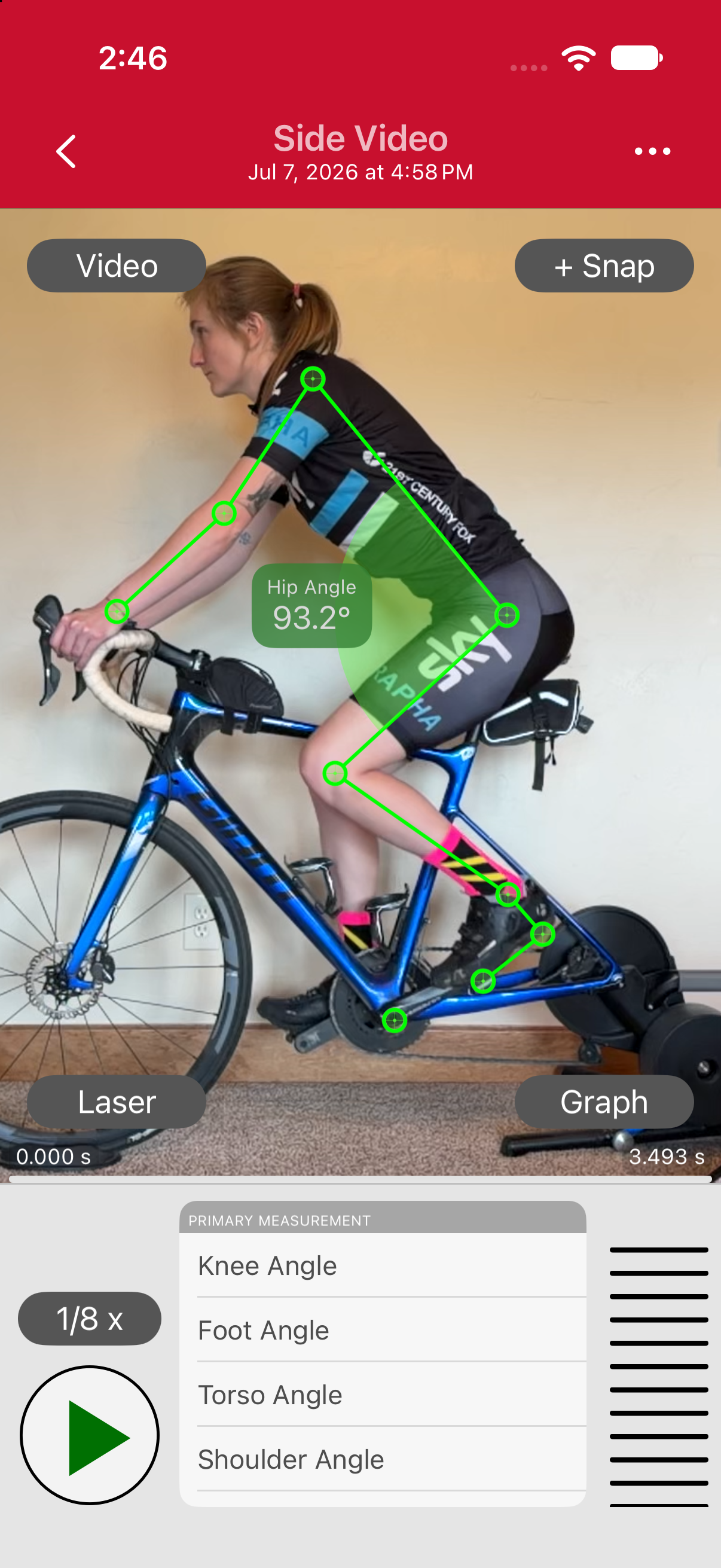

| Video | The whole recording, frame by frame, with the tracking points drawn on your body. |

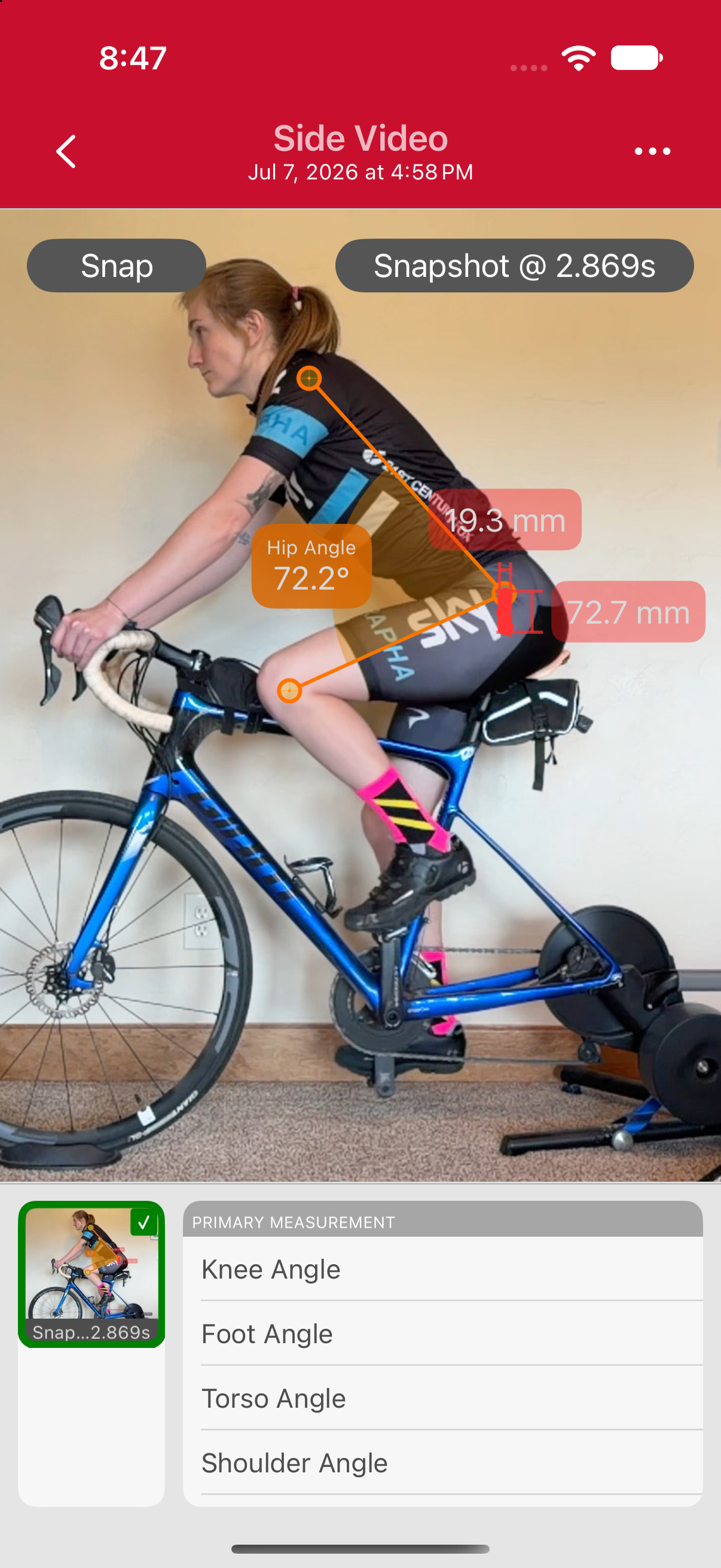

| Snapshot | A single frame you've saved, where you can add measurements, a title, and notes. You make one with + Snap in the Video view. |
A side video has all four views. A front video has every view except the Classic Dashboard.
Two kinds of record work differently:
- A Free Form video has only Video and Snapshot, because it has no fit results to put on a dashboard.
- A Bike Measurements record opens on its own page, with the photo and your bike's numbers.
