Getting around Elite
Tools in the Video view
| # | Tool | Where | What it does |
|---|---|---|---|
| 1 | + Snap | Top right | Saves the frame you're on as a Snapshot. |
| 2 | Trace | Tap any tracking point | Draws the path that point takes through the pedal stroke. Tap it again to stop. |
| 3 | Laser | Bottom left | A straight line you can drag over the picture, for checking alignment by eye. Tap the line to flip between horizontal and vertical. |

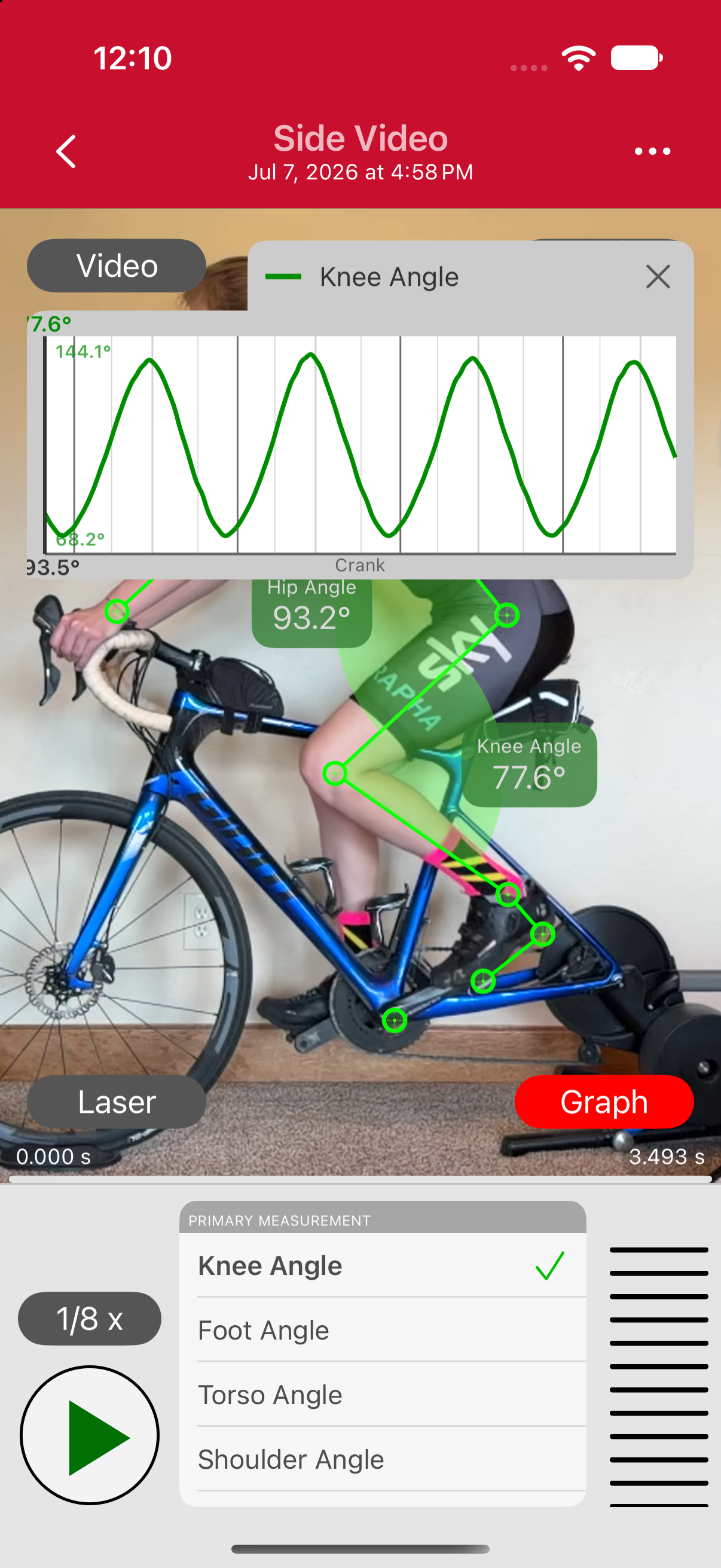

| 4 | Graph | Bottom right | Plots a measurement through the pedal stroke, against crank position. To add a second line, tap the measurement's name on the graph itself. Tap the graph to jump to that frame. |
| 5 | Playback speed | Bottom left | How fast the video plays: 1/16 x, 1/8 x, 1/4 x, 1/2 x, or 1 x. |
| 6 | Play button | Bottom left | Plays the video. Tap it again to pause. |
| 7 | Measurement list | Below the video | Turns measurements on and off on the picture. These choices don't change the graph. |
| 8 | Scroller Bars | Right of the list | Drag up or down to step through the video one frame at a time. |
